Blade-type Droplet Eliminators and Spacers

Droplet eliminators permit the separation of fluids in a gasseous stream, the most common case of this being the separation of water droplets present in an airstream. Refill Tech Solutions' blade-type droplet eliminators offer the highest performance on the market, both from the point of view of separation efficiency and for their high mechanical strength. Moreover Refill Tech Solutions uses only prime quality polypropylene for the manufacture of these droplet eliminator blades.

ADVANTAGES
• High separation efficiency

• Low pressure drops


• Mechanical strength

• Simplicity in positioning thanks to their modularity

• Lightweight, which permits easy handling

• Resistance to most chemicals and to biological aggression

  • BLADE

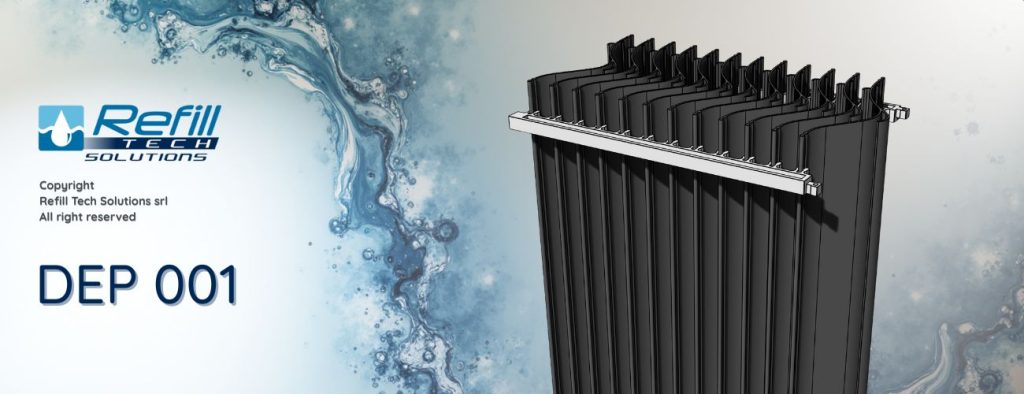

    DEP 001 (Drift Eliminator Profile). The DEP001 droplet eliminator is a profile obtained by the extrusion of a plastic (usually PP).

    Its design is such as to permit the separation of water droplets contained in an airstream, which are collected and concentrated when impacting with the profile and then channelled downwards by gravity along the profile.

    Technical Characteristics
    Material of ConstructionPP
    Length of standard profile 6000 mm
    Width 170 mm
    Maximum Temperature 90°C
    Maximum Air Velocity from 2,0 to 6,0 m/s
    Spacing 20/25 mm

    DOWNLOAD DATASHEET

  • DEP002

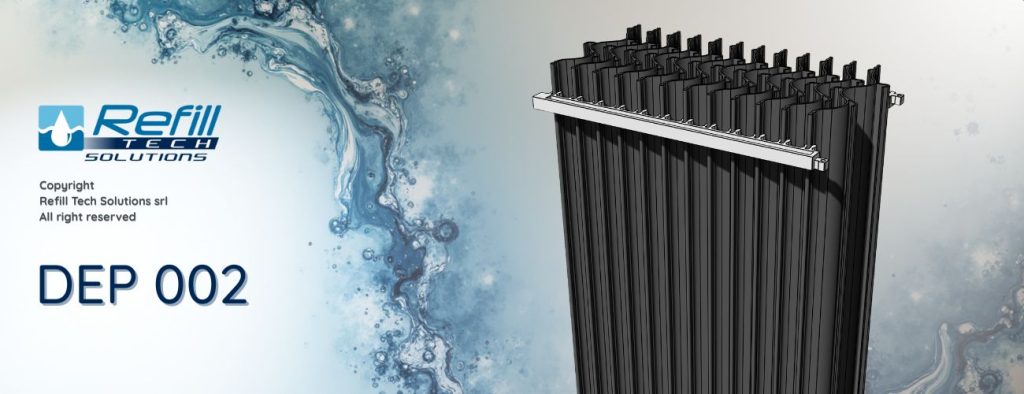

    DEP 002 (Drift Eliminator Profile). The DEP 002 droplet eliminator is a profile obtained by the extrusion of plastic (usually PP).

    Its design is such as to permit the separation of water droplets contained in an airstream, which are collected and concentrated when impacting with the profile and then channelled downwards by gravity along the profile.

    Technical Characteristics
    Material of ConstructionPP
    Length of standard profile 6000 mm
    Width 150 mm
    Maximum Temperature 90°C
    Maximum Air Velocity from 1,0 to 4,0 m/s
    Spacing 25 mm

    DOWNLOAD DATASHEET

  • DEP003

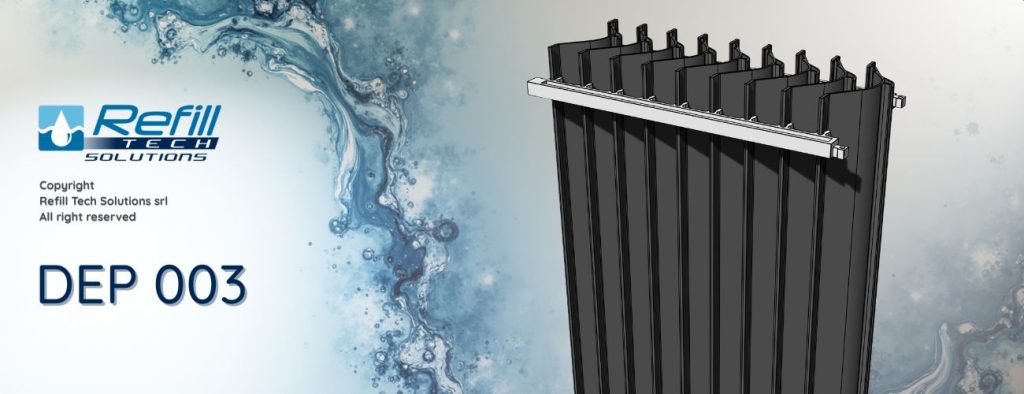

    DEP 003 (Drift Eliminator Profile). The DEP 003 droplet eliminator is a profile obtained by the extrusion of plastic (usually PP).

    Its design is such as to permit the separation of water droplets contained in an airstream, which are collected and concentrated when impacting with the profile and then channelled downwards by gravity along the profile.

    Technical Characteristics
    Material of ConstructionPP
    Length of standard profile 6000 mm
    Width 101 mm
    Maximum Temperature 90°C
    Maximum Air Velocity from 2,0 to 5,0 m/s
    Spacing 33 mm

    DOWNLOAD DATASHEET

  • DEP004

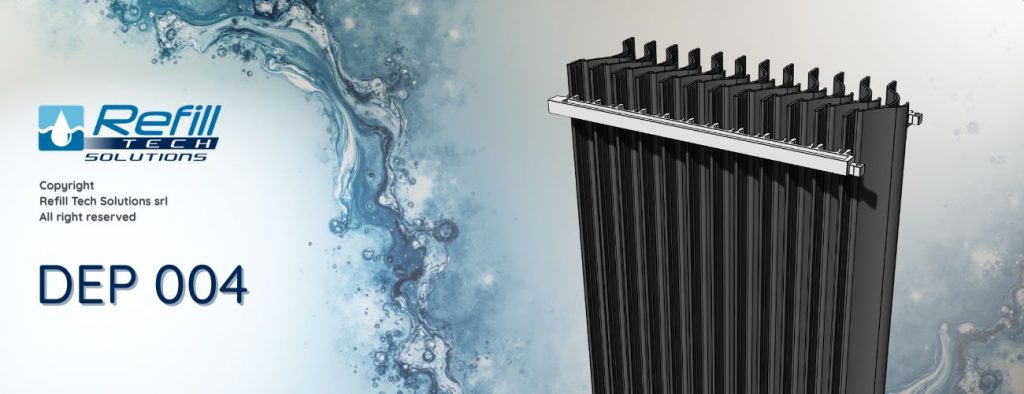

    DEP 004 (Drift Eliminator Profile). The DEP 004 droplet eliminator is a profile obtained by the extrusion of plastic (usually PP).

    Its design is such as to permit the separation of water droplets contained in an airstream, which are collected and concentrated when impacting with the profile and then channelled downwards by gravity along the profile.

    Technical Characteristics
    Material of ConstructionPP
    Length of standard profile 6000 mm
    Width 104 mm
    Maximum Temperature 90°C
    Maximum Air Velocity from 2,5 to 4,0 m/s
    Spacing 25 mm

    DOWNLOAD DATASHEET

  • Pettine distanziatore

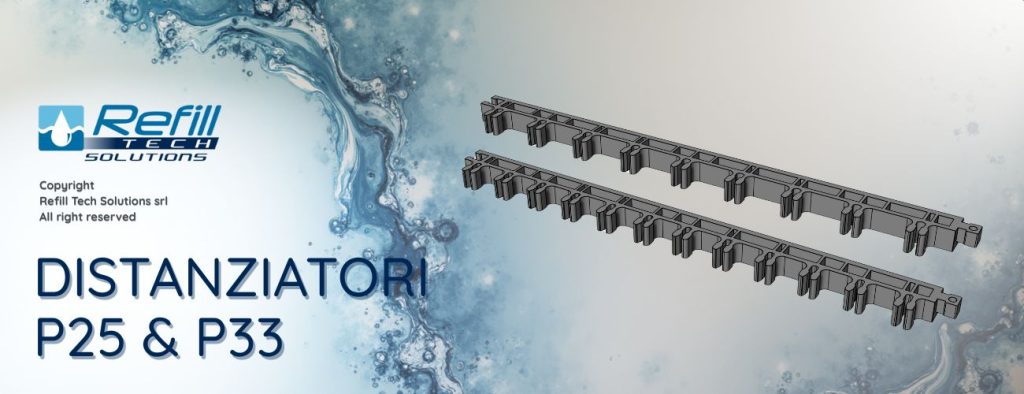

    Spacers - The spacers for DEP are fabricated by a process of injection moulding of virgin polypropylene, usually of black colour, but a neutral version is available on request.

    Technical Characteristics
    Material of ConstructionPP
    Length 300 mm
    Spacing 25/33 mm
    Maximum Temperature 90°C

    DOWNLOAD DATASHEET
